Grafana Dashboards

Audience: Platform engineer, Tenant operator

Part of the Observability guide. The panels below query the Metrics reference and the SLO recording rules; the scrape wiring they depend on is in Accessing metrics.

Import as code. Two reference dashboards ship under deploy/monitoring/ — import them into Grafana (Dashboards → New → Import) or provision them, rather than rebuilding the panels by hand. They split along the scrape boundary each reads from; the layouts below document what each contains.

Dashboard	Source scrape	Audience
grafana-dashboard-tenant.json	a tenant's AGC + egress proxy (per-tenant mTLS)	operator of one tenant's runners
grafana-dashboard-platform.json	the GMC manager (one cluster-wide TLS scrape)	Platform engineer running the GMC / the fleet

The split mirrors how the metrics are exposed (see Accessing metrics): a platform operator scrapes the single GMC endpoint and cannot necessarily reach every tenant's mTLS metrics port, so the fleet rollups the GMC exports (managed_gateways, runnergroups_degraded, egress_rules_stale, the proxy-quota gauges) get their own dashboard.

The screenshots below are rendered against a real Prometheus with synthetic data by the reproducible harness in deploy/monitoring/preview/; regenerate them there whenever a dashboard changes.

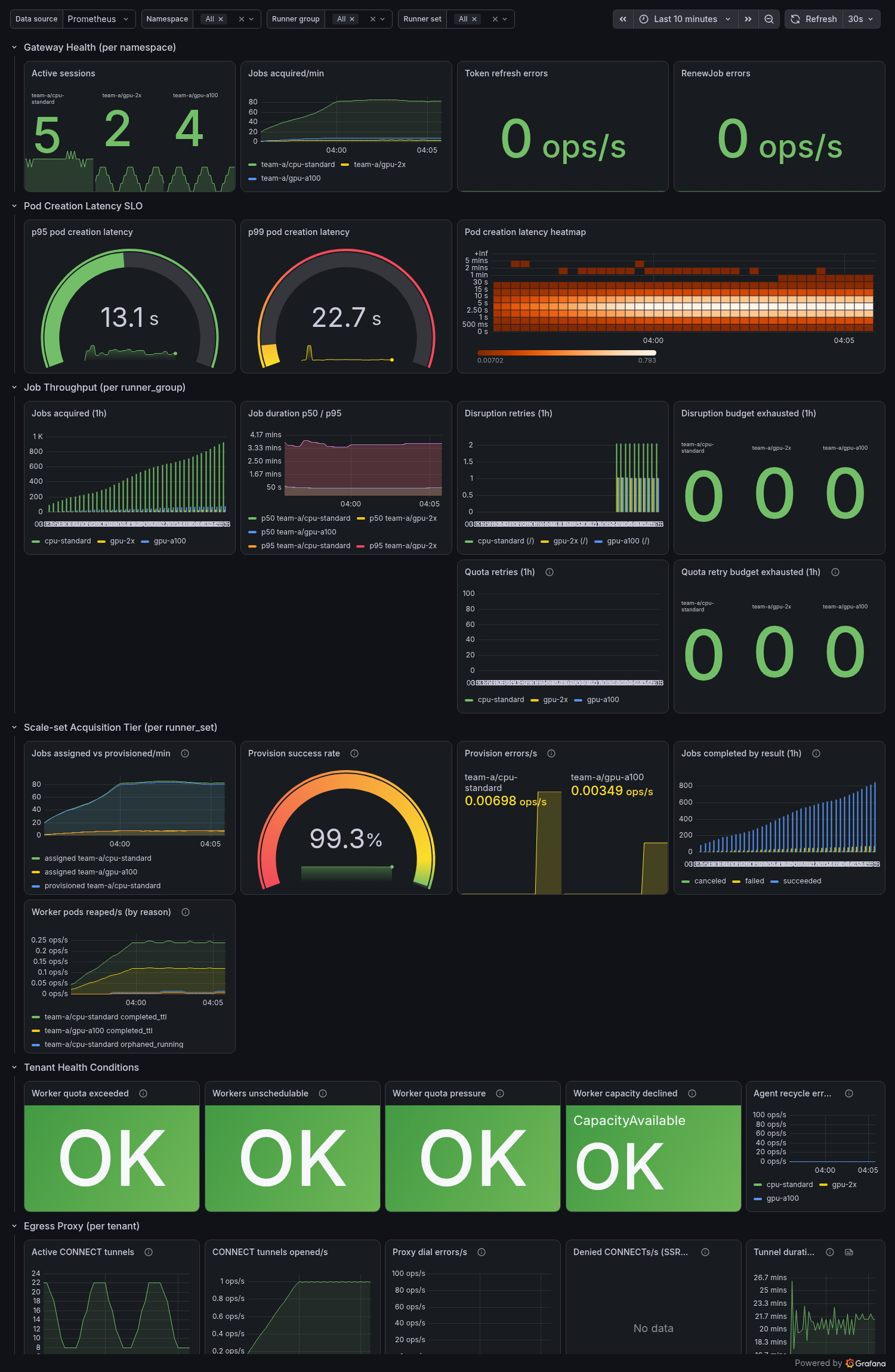

Tenant dashboard

Filtered by the $namespace, $runner_group, and $runner_set template variables. Uses the SLO recording rules as data sources where applicable.

Row 1 — Gateway Health (per namespace)

Panel	Query	Visualization
Active sessions	actions_gateway_active_sessions	Stat / Time series
Jobs acquired/min	rate(actions_gateway_jobs_acquired_total[5m]) * 60	Time series
Token refresh errors	rate(actions_gateway_token_refresh_errors_total[5m])	Stat (threshold: >0 = red)
RenewJob errors	rate(actions_gateway_renew_job_errors_total[5m])	Stat (threshold: >0 = yellow)

Row 2 — Pod Creation Latency SLO

Every panel in this row is classic acquisition only (Q713). pod_creation_latency_seconds is not observed on the scale-set path, so on a ScaleSet set, the default tier since P5, all three read blank rather than green. A blank SLO gauge here is a missing series, not a met target.

Panel	Query	Visualization
p95 latency	actions_gateway:pod_creation_latency_seconds:p95	Gauge (green <15s, yellow <60s, red >60s)
p99 latency	actions_gateway:pod_creation_latency_seconds:p99	Gauge
Latency heatmap	rate(actions_gateway_pod_creation_latency_seconds_bucket[5m])	Heatmap

Row 3 — Job Throughput (per runner_group)

Panel	Query	Visualization
Jobs acquired total	increase(actions_gateway_jobs_acquired_total[1h])	Bar chart by runner_group
Job duration p50/p95	actions_gateway:job_duration_seconds:p50/p95	Time series. Classic acquisition only (Q713): job_duration_seconds is not observed on the scale-set path, so this panel is empty on a ScaleSet set
Disruption retries	sum by (runner_group, tier, cause) (increase(actions_gateway_eviction_retries_total[1h]))	Bar chart, split by acquisition tier (classic, scaleset) and cause (eviction, preemption, deletion, abandoned). Keep the causes visually distinct: eviction rising means node pressure, preemption rising means a priorityTiers floor is displacing opportunistic work, abandoned rising means workers are not being scheduled at all before pendingPodDeadline reaps them — different investigations entirely
Abandoned runs awaiting capacity	sum by (runner_group, tier, outcome) (increase(actions_gateway_abandoned_run_rerun_waits_total[1h]))	Stat or bar chart, split by acquisition tier since Q766 ported the recovery to scaleset. expired is the one to watch: a job whose run was force-cancelled and whose capacity never came back inside the wait window is a job silently lost until someone re-runs it by hand
Disruption budget exhausted	increase(actions_gateway_eviction_retries_exhausted_total[1h])	Stat (threshold: >0 = red)
Quota retries	increase(actions_gateway_quota_retries_total[1h])	Bar chart
Quota retry budget exhausted	increase(actions_gateway_quota_retries_exhausted_total[1h])	Stat (threshold: >0 = red)

Row 4 — Scale-set Acquisition Tier (per runner_set)

The default acquisition protocol (Q264). These panels are the scale-set analog of the classic Gateway-Health and Job-Throughput rows above: a ScaleSet-protocol RunnerSet never emits actions_gateway_active_sessions or jobs_acquired_total, so its throughput and health are only visible here. Labelled by runner_set (not runner_group), so the $runner_group variable does not filter these — the $runner_set variable does.

Panel	Query	Visualization
Jobs assigned vs. provisioned/min	sum by (namespace, runner_set) (rate(actions_gateway_scaleset_jobs_assigned_total[5m])) * 60 and the …_provisioned_total counterpart	Time series (a persistent gap = provisioning lagging)
Provision success rate	actions_gateway:scaleset_provision_success_rate:rate5m	Gauge (green >0.99, yellow <0.99, red <0.9)
Provision errors/s	sum by (namespace, runner_set) (rate(actions_gateway_scaleset_provision_errors_total[5m]))	Stat (threshold: >0 = yellow)
Jobs completed by result (1h)	sum by (result) (increase(actions_gateway_scaleset_jobs_completed_total[1h]))	Bar chart by result
Worker pods reaped/s (by reason)	sum by (namespace, runner_set, reason) (rate(actions_gateway_worker_pods_reaped_total{runner_set!=""}[5m]))	Time series — the reaper counter's scale-set series (Q514), joinable with the capacity gauges above on (namespace, runner_set)

Row 5 — Tenant Health Conditions

Panel	Query	Visualization
Worker quota exceeded	max(actions_gateway_worker_quota_exceeded or actions_gateway_runnerset_worker_quota_exceeded)	Stat (1 = red)
Workers unschedulable	max(actions_gateway_workers_unschedulable or actions_gateway_runnerset_workers_unschedulable)	Stat (1 = red)
Worker quota pressure	max(actions_gateway_worker_quota_pressure or actions_gateway_runnerset_worker_quota_pressure)	Stat (1 = yellow)
Worker capacity declined	max by (reason) (actions_gateway_runnerset_worker_capacity_declined)	Stat (1 = orange), reason shown beside the value
Agent recycle errors	rate(actions_gateway_agent_recycle_errors_total[5m])	Time series

The first three capacity panels union the v1 RunnerGroup family with its actions_gateway_runnerset_* v2 twin (Q319). The two families key on different labels — runner_group and runner_set — so or unions rather than overlaps them, and a panel that named only the v1 family would read a flat 0 on a v2-only deploy. To break either out per owner, replace max(...) with max by (namespace, runner_set) (actions_gateway_runnerset_...).

Worker capacity declined has no v1 twin, and No data is a normal reading (Q643, Q658). The gauge is emitted only for a RunnerSet that set spec.capacityGate.mode, so an empty panel means no set opted in, not that the query is broken. It groups by reason rather than reducing to a bare 0/1 because the value alone cannot separate a live decline from the latched AwaitingProbe state, and those call for different actions; exactly one series exists per gated set, so max by (reason) cannot double-count. The 1 is orange rather than red on purpose: a latched gate is throttling intake, not failing, and it can sit True indefinitely on an idle set whose shape stays unplaceable.

Row 6 — Egress Proxy (per tenant)

Panel	Query	Visualization
Active CONNECT tunnels	actions_gateway_proxy_connections_active	Time series
CONNECT tunnels opened/s	rate(actions_gateway_proxy_connections_total[5m])	Time series
Proxy dial errors/s	rate(actions_gateway_proxy_dial_errors_total[5m])	Time series
Denied CONNECTs/s (SSRF signal)	rate(actions_gateway_proxy_connect_denied_total[5m])	Time series
Tunnel duration p95	histogram_quantile(0.95, rate(actions_gateway_proxy_tunnel_duration_seconds_bucket[5m]))	Time series

Row 7 — Proxy & Quota (kube-state-metrics)

Panel	Query	Visualization
Proxy replicas ready	kube_deployment_status_replicas_ready{deployment="actions-gateway-proxy"}	Time series
HPA desired vs. current	kube_horizontalpodautoscaler_status_*_replicas	Time series
ResourceQuota usage	kube_resourcequota{type="used"} filtered by namespace	Bar gauge

Row 7 — Reliability Signals (Q315)

Panel	Query	Visualization
Job acquisition errors/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_job_acquisition_errors_total[5m]))	Time series
Message poll errors/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_message_poll_errors_total[5m]))	Time series
RenewJob teardowns/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_renew_job_teardowns_total[5m]))	Time series
Worker pods reaped/s (by reason)	sum by (runner_group, reason) (rate(actions_gateway_worker_pods_reaped_total[5m]))	Time series
Broker token propagation retries/s	sum by (runner_group) (rate(actions_gateway_broker_token_propagation_retries_total[5m]))	Time series

Row 8 — Fan-out Safety (Q260 / Q266)

Panel	Query	Visualization
Duplicate job deliveries/s	sum by (runner_group) (rate(actions_gateway_jobs_duplicate_delivery_total[5m]))	Time series
Abandoned-delivery completions/s (by outcome)	sum by (runner_group, outcome) (rate(actions_gateway_abandoned_delivery_completions_total[5m]))	Time series
Fan-out loser recycle deferred/s (by outcome)	sum by (runner_group, outcome) (rate(actions_gateway_fanout_loser_recycle_deferred_total[5m]))	Time series

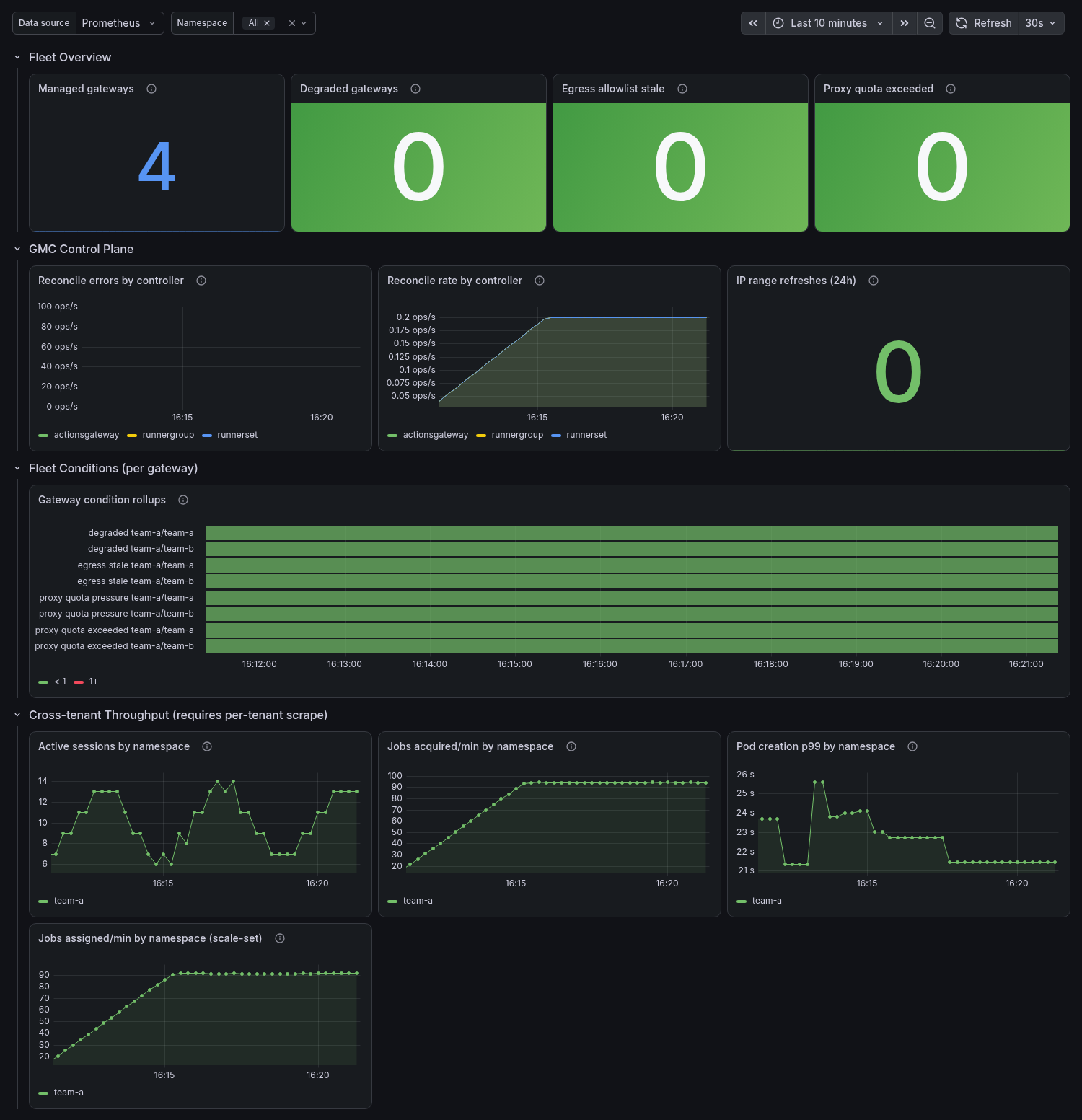

Platform dashboard

Fleet-wide; $namespace filters the cross-tenant rows.

Row 1 — Fleet Overview

Panel	Query	Visualization
Managed gateways	actions_gateway_managed_gateways	Stat
Degraded gateways	sum(actions_gateway_runnergroups_degraded) (v1) / sum(actions_gateway_runnersets_degraded) (v2)	Stat (>0 = red)
Egress allowlist stale	sum(actions_gateway_egress_rules_stale)	Stat (>0 = red)
Proxy quota exceeded	sum(actions_gateway_proxy_quota_exceeded)	Stat (>0 = red)

Row 2 — GMC Control Plane

Panel	Query	Visualization
Reconcile errors by controller	rate(controller_runtime_reconcile_errors_total[5m])	Time series
Reconcile rate by controller	rate(controller_runtime_reconcile_total[5m])	Time series
IP range refreshes (24h)	sum(increase(actions_gateway_ip_range_updates_total[24h]))	Stat

Row 3 — Fleet Conditions (per gateway)

Panel	Query	Visualization
Gateway condition rollups	actions_gateway_runnergroups_degraded / _egress_rules_stale / _proxy_quota_pressure / _proxy_quota_exceeded (v1); _runnersets_degraded / _agc_available / _egress_unattributed (v2); _github_egress_incomplete (v2 EgressProxy only)	State timeline (1 = firing)

Row 4 — Cross-tenant Throughput (requires the per-tenant AGC scrapes)

Panel	Query	Visualization
Active sessions by namespace	sum by (namespace) (actions_gateway_active_sessions)	Time series
Jobs acquired/min by namespace (classic)	sum by (namespace) (rate(actions_gateway_jobs_acquired_total[5m])) * 60	Time series
Jobs assigned/min by namespace (scale-set)	sum by (namespace) (rate(actions_gateway_scaleset_jobs_assigned_total[5m])) * 60	Time series
Pod creation p99 by namespace	actions_gateway:pod_creation_latency_seconds:p99	Time series. Classic acquisition only (Q713), so namespaces running ScaleSet sets contribute no series

Dashboard Variables

The dashboards ship with these template variables already wired:

• $namespace — label_values({__name__=~"actions_gateway_active_sessions|actions_gateway_scaleset_jobs_assigned_total"}, namespace) — filters to a single tenant (both dashboards). The union of the classic and scale-set series is deliberate: a scale-set-only deploy emits no active_sessions, so keying the variable on that alone would leave the dashboard blank.
• $runner_group — label_values(actions_gateway_active_sessions{namespace="$namespace"}, runner_group) — filters to a specific RunnerGroup on the classic-tier panels (tenant dashboard). The runner_set-labelled panels are not filtered by it; $runner_set is their variable.
• $runner_set — label_values(actions_gateway_runnerset_worker_quota_pressure{namespace="$namespace"}, runner_set) — filters to a specific RunnerSet on the scale-set and v2 capacity panels (tenant dashboard). It reads its label values from the Q319 capacity gauges rather than the scaleset_* series on purpose: those gauges are emitted for every RunnerSet, while scaleset_* exists only for ScaleSet-protocol sets, so keying on the latter would hide a Classic set from the dropdown entirely.

---
