Grafana Dashboards

Audience: Platform engineer, Tenant operator, Budget owner

Part of the Observability guide. The panels below query the Metrics reference and the SLO recording rules; the scrape wiring they depend on is in Accessing metrics.

Import as code. Three reference dashboards ship under deploy/monitoring/: import them into Grafana (Dashboards → New → Import) or provision them, rather than rebuilding the panels by hand. The layouts below document what each contains.

Dashboard	Source scrape	Audience
grafana-dashboard-tenant.json	a tenant's AGC + egress proxy (per-tenant mTLS)	operator of one tenant's runners
grafana-dashboard-platform.json	the GMC manager (one cluster-wide TLS scrape)	Platform engineer running the GMC / the fleet
grafana-dashboard-budget.json	a tenant's AGC (per-tenant mTLS)	Budget owner paying for the fleet

The first two split along the scrape boundary each reads from, which mirrors how the metrics are exposed (see Accessing metrics): a platform operator scrapes the single GMC endpoint and cannot necessarily reach every tenant's mTLS metrics port, so the fleet rollups the GMC exports (managed_gateways, runnergroups_degraded, egress_rules_stale, the proxy-quota gauges) get their own dashboard.

The budget dashboard splits on a different axis: it reads the same tenant scrape as the tenant dashboard, and exists because the question is different rather than the data. A budget owner is asking what each tenant consumed and what it cost, which is one metric read across every namespace at once, not the health of any one of them.

The screenshots below are rendered against a real Prometheus with synthetic data by the reproducible harness in deploy/monitoring/preview/; regenerate them there whenever a dashboard changes.

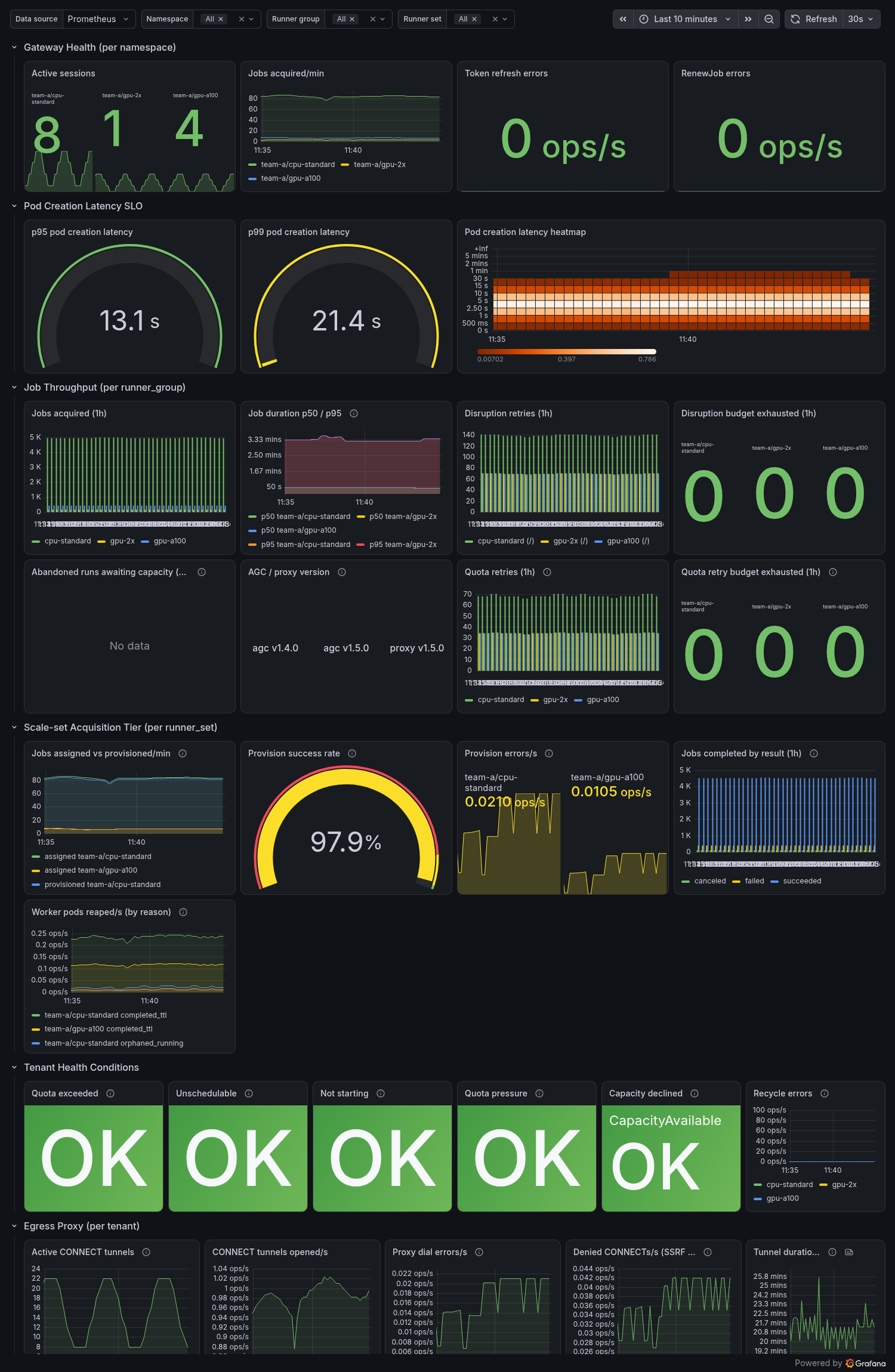

Tenant dashboard

Filtered by the $namespace, $runner_group, and $runner_set template variables. Uses the SLO recording rules as data sources where applicable.

Row 1 — Gateway Health (per namespace)

Panel	Query	Visualization
Active sessions	actions_gateway_active_sessions	Stat / Time series
Jobs acquired/min	rate(actions_gateway_jobs_acquired_total[5m]) * 60	Time series
Token refresh errors	rate(actions_gateway_token_refresh_errors_total[5m])	Stat (threshold: >0 = red)
RenewJob errors	rate(actions_gateway_renew_job_errors_total[5m])	Stat (threshold: >0 = yellow)

Row 2 — Pod Creation Latency SLO

Panel	Query	Visualization
p95 latency	actions_gateway:pod_creation_latency_seconds:p95	Gauge (green <15s, yellow <60s, red >60s)
p99 latency	actions_gateway:pod_creation_latency_seconds:p99	Gauge
Latency heatmap	rate(actions_gateway_pod_creation_latency_seconds_bucket[5m])	Heatmap

Row 3 — Job Throughput (per runner_group)

Panel	Query	Visualization
Jobs acquired total	increase(actions_gateway_jobs_acquired_total[1h])	Bar chart by runner_group
Job duration p50/p95	actions_gateway:job_duration_seconds:p50/p95	Time series, both acquisition tiers. Worker pod lifetime, so it excludes the pre-creation staging a slow acquirejob or a spec.scaleUp throttle adds
AGC / proxy version	actions_gateway_build_info{component=~"agc\|proxy"}	Stat showing the series name, not its value (the value is always 1). Sits under the job-duration panel because it says which span that panel is measuring: the classic tier's was longer before v1.5.0 and nothing was renamed (upgrade note). The metric carries no namespace label, so $namespace does not filter it
Disruption retries	sum by (runner_group, tier, cause) (increase(actions_gateway_eviction_retries_total[1h]))	Bar chart, split by acquisition tier (classic, scaleset) and cause (eviction, preemption, deletion, abandoned, vanished). Keep the causes visually distinct: eviction rising means node pressure, preemption rising means a priorityTiers floor is displacing opportunistic work, abandoned rising means workers are not being scheduled at all before pendingPodDeadline reaps them, vanished rising means the AGC itself keeps missing worker teardowns — different investigations entirely
Abandoned runs awaiting capacity	sum by (runner_group, tier, outcome) (increase(actions_gateway_abandoned_run_rerun_waits_total[1h]))	Stat or bar chart, split by acquisition tier since Q766 ported the recovery to scaleset. expired is the one to watch: a job whose run was force-cancelled and whose capacity never came back inside the wait window is a job silently lost until someone re-runs it by hand
Disruption budget exhausted	increase(actions_gateway_eviction_retries_exhausted_total[1h])	Stat (threshold: >0 = red)
Quota retries	increase(actions_gateway_quota_retries_total[1h])	Bar chart
Quota retry budget exhausted	increase(actions_gateway_quota_retries_exhausted_total[1h])	Stat (threshold: >0 = red)

Row 4 — Scale-set Acquisition Tier (per runner_set)

The default acquisition protocol (Q264). These panels are the scale-set analog of the classic Gateway-Health and Job-Throughput rows above: a ScaleSet-protocol RunnerSet never emits actions_gateway_active_sessions or jobs_acquired_total, so its throughput and health are only visible here. Labelled by runner_set (not runner_group), so the $runner_group variable does not filter these — the $runner_set variable does.

Panel	Query	Visualization
Jobs assigned vs. provisioned/min	sum by (namespace, runner_set) (rate(actions_gateway_scaleset_jobs_assigned_total[5m])) * 60 and the …_provisioned_total counterpart	Time series (a persistent gap = provisioning lagging)
Provision success rate	actions_gateway:scaleset_provision_success_rate:rate5m	Gauge (green >0.99, yellow <0.99, red <0.9)
Provision errors/s	sum by (namespace, runner_set) (rate(actions_gateway_scaleset_provision_errors_total[5m]))	Stat (threshold: >0 = yellow)
Jobs completed by result (1h)	sum by (result) (increase(actions_gateway_scaleset_jobs_completed_total[1h]))	Bar chart by result
Worker pods reaped/s (by reason)	sum by (namespace, runner_set, reason) (rate(actions_gateway_worker_pods_reaped_total{runner_set!=""}[5m]))	Time series — the reaper counter's per-RunnerSet series (Q514), joinable with the capacity gauges above on (namespace, runner_set). The label keys on the owning kind, so a Classic-protocol RunnerSet appears here too

Row 5 — Tenant Health Conditions

Panel titles here drop the Worker/Workers prefix the row header already supplies: six panels share the 24-column row, and a 4-wide panel ellipsis-truncates anything longer in the rendered screenshot.

Panel	Query	Visualization
Quota exceeded	max(actions_gateway_worker_quota_exceeded or actions_gateway_runnerset_worker_quota_exceeded)	Stat (1 = red)
Unschedulable	max(actions_gateway_workers_unschedulable or actions_gateway_runnerset_workers_unschedulable)	Stat (1 = red)
Not starting	max(actions_gateway_runnerset_workers_not_starting)	Stat (1 = red)
Quota pressure	max(actions_gateway_worker_quota_pressure or actions_gateway_runnerset_worker_quota_pressure)	Stat (1 = yellow)
Capacity declined	max by (reason) (actions_gateway_runnerset_worker_capacity_declined)	Stat (1 = orange), reason shown beside the value
Recycle errors	rate(actions_gateway_agent_recycle_errors_total[5m])	Time series

The quota and unschedulable panels union the v1 RunnerGroup family with its actions_gateway_runnerset_* v2 twin (Q319); Not starting and Capacity declined are v2-only and have no v1 family to union. The two families key on different labels — runner_group and runner_set — so or unions rather than overlaps them, and a panel that named only the v1 family would read a flat 0 on a v2-only deploy. To break either out per owner, replace max(...) with max by (namespace, runner_set) (actions_gateway_runnerset_...).

Capacity declined has no v1 twin, and No data is a normal reading (Q643, Q658). The gauge is emitted only for a RunnerSet that set spec.capacityGate.mode, so an empty panel means no set opted in, not that the query is broken. It groups by reason rather than reducing to a bare 0/1 because the value alone cannot separate a live decline from the latched AwaitingProbe state, and those call for different actions; exactly one series exists per gated set, so max by (reason) cannot double-count. The 1 is orange rather than red on purpose: a latched gate is throttling intake, not failing, and it can sit True indefinitely on an idle set whose shape stays unplaceable.

Row 6 — Egress Proxy (per tenant)

Panel	Query	Visualization
Active CONNECT tunnels	actions_gateway_proxy_connections_active	Time series
CONNECT tunnels opened/s	rate(actions_gateway_proxy_connections_total[5m])	Time series
Proxy dial errors/s	rate(actions_gateway_proxy_dial_errors_total[5m])	Time series
Denied CONNECTs/s (SSRF signal)	rate(actions_gateway_proxy_connect_denied_total[5m])	Time series
Tunnel duration p95	histogram_quantile(0.95, rate(actions_gateway_proxy_tunnel_duration_seconds_bucket[5m]))	Time series

Row 7 — Proxy & Quota (kube-state-metrics)

Panel	Query	Visualization
Proxy replicas ready	kube_deployment_status_replicas_ready{deployment="actions-gateway-proxy"}	Time series
HPA desired vs. current	kube_horizontalpodautoscaler_status_*_replicas	Time series
ResourceQuota usage	kube_resourcequota{type="used"} filtered by namespace	Bar gauge

Row 7 — Reliability Signals (Q315)

Panel	Query	Visualization
Job acquisition errors/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_job_acquisition_errors_total[5m]))	Time series
Message poll errors/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_message_poll_errors_total[5m]))	Time series
RenewJob teardowns/s (by reason)	sum by (namespace, reason) (rate(actions_gateway_renew_job_teardowns_total[5m]))	Time series
Worker pods reaped/s (by reason)	sum by (runner_group, reason) (rate(actions_gateway_worker_pods_reaped_total[5m]))	Time series
Broker token propagation retries/s	sum by (runner_group) (rate(actions_gateway_broker_token_propagation_retries_total[5m]))	Time series

Row 8 — Fan-out Safety (Q260 / Q266)

Panel	Query	Visualization
Duplicate job deliveries/s	sum by (runner_group) (rate(actions_gateway_jobs_duplicate_delivery_total[5m]))	Time series
Abandoned-delivery completions/s (by outcome)	sum by (runner_group, outcome) (rate(actions_gateway_abandoned_delivery_completions_total[5m]))	Time series
Fan-out loser recycle deferred/s (by outcome)	sum by (runner_group, outcome) (rate(actions_gateway_fanout_loser_recycle_deferred_total[5m]))	Time series

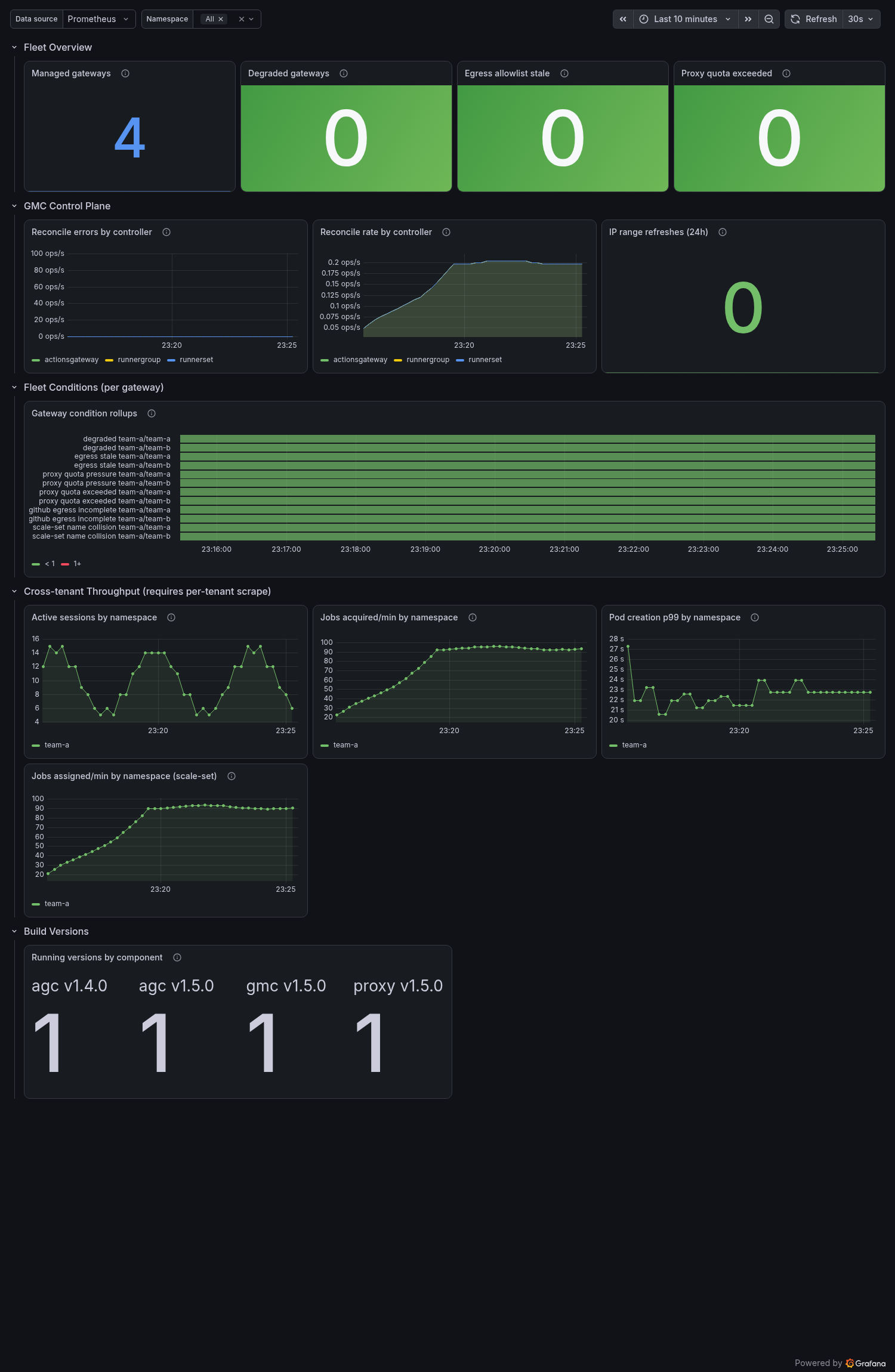

Platform dashboard

Fleet-wide; $namespace filters the cross-tenant rows.

Row 1 — Fleet Overview

Panel	Query	Visualization
Managed gateways	actions_gateway_managed_gateways	Stat
Degraded gateways	sum(actions_gateway_runnergroups_degraded) (v1) / sum(actions_gateway_runnersets_degraded) (v2)	Stat (>0 = red)
Egress allowlist stale	sum(actions_gateway_egress_rules_stale)	Stat (>0 = red)
Proxy quota exceeded	sum(actions_gateway_proxy_quota_exceeded)	Stat (>0 = red)

Row 2 — GMC Control Plane

Panel	Query	Visualization
Reconcile errors by controller	rate(controller_runtime_reconcile_errors_total[5m])	Time series
Reconcile rate by controller	rate(controller_runtime_reconcile_total[5m])	Time series
IP range refreshes (24h)	sum(increase(actions_gateway_ip_range_updates_total[24h]))	Stat

Row 3 — Fleet Conditions (per gateway)

Panel	Query	Visualization
Gateway condition rollups	actions_gateway_runnergroups_degraded / _egress_rules_stale / _proxy_quota_pressure / _proxy_quota_exceeded (v1); _runnersets_degraded / _agc_available / _egress_unattributed / _scale_set_name_collision (v2); _github_egress_incomplete (v2 EgressProxy only)	State timeline (1 = firing)

Row 4 — Cross-tenant Throughput (requires the per-tenant AGC scrapes)

Panel	Query	Visualization
Active sessions by namespace	sum by (namespace) (actions_gateway_active_sessions)	Time series
Jobs acquired/min by namespace (classic)	sum by (namespace) (rate(actions_gateway_jobs_acquired_total[5m])) * 60	Time series
Jobs assigned/min by namespace (scale-set)	sum by (namespace) (rate(actions_gateway_scaleset_jobs_assigned_total[5m])) * 60	Time series

Row 5 — Build Versions

Panel	Query	Visualization
Running versions by component	count by (component, version) (actions_gateway_build_info)	Stat, one tile per component and version with the instance count

The fleet's version spread during a staggered upgrade, and the answer to which tenants have crossed a semantics change: job_duration_seconds changed span at v1.5.0 without a rename (upgrade note). The GMC comes from this dashboard's own scrape; agc and proxy need the per-tenant scrapes, so a platform-only Prometheus shows one bar. actions_gateway_build_info carries no namespace label, so $namespace does not filter this row. | Pod creation p99 by namespace | actions_gateway:pod_creation_latency_seconds:p99 | Time series, both acquisition tiers |

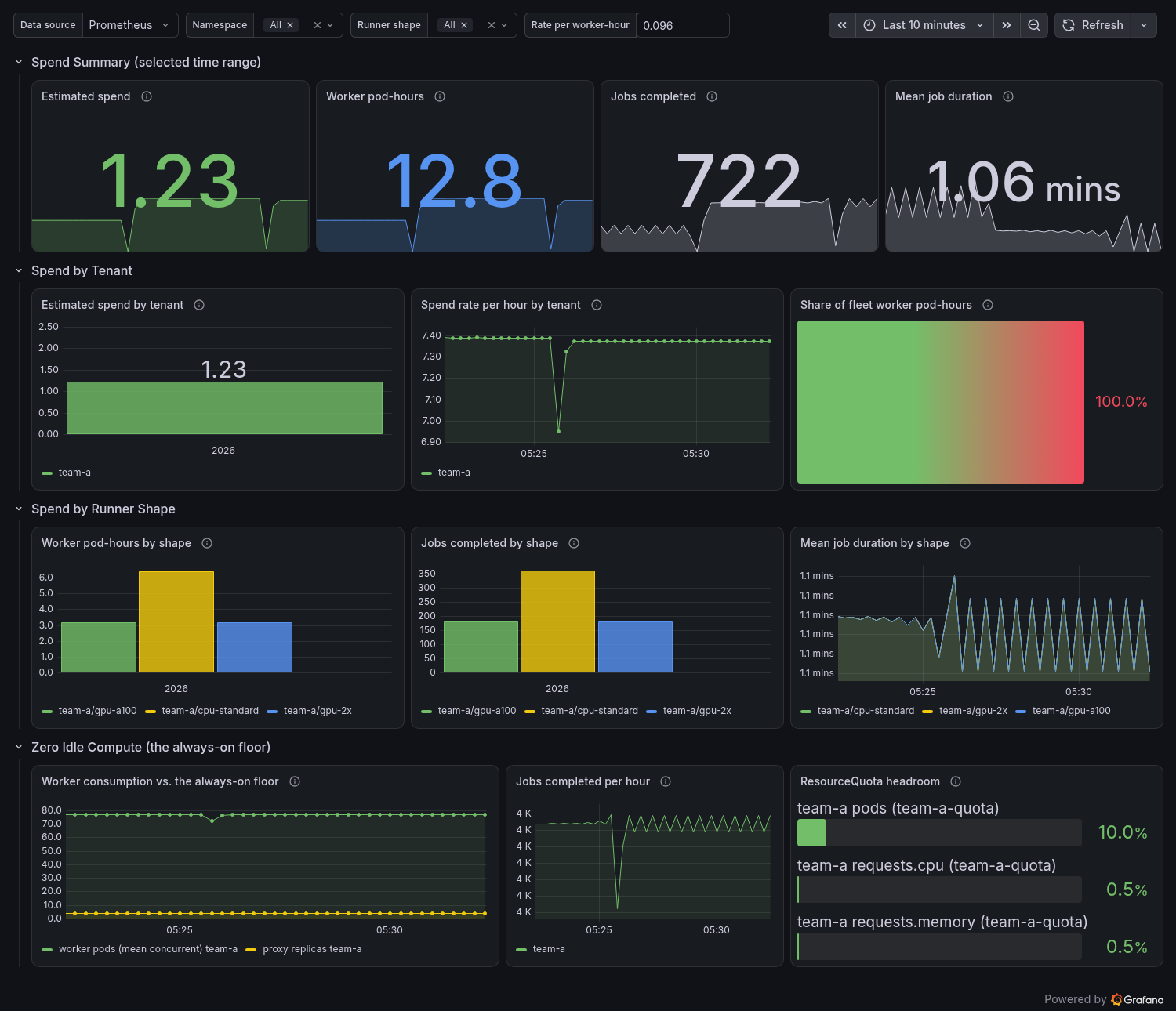

Budget dashboard

For the budget owner, who owns the spend and usually cannot read the cluster at all. Filtered by $namespace and $runner_group, and priced by a $rate textbox. It ships with auto-refresh off, where the other two use 30s: the default window is seven days, and a spend figure over that range does not change meaningfully between two thirty-second polls.

Every panel reads one metric: actions_gateway_job_duration_seconds. That series is worker pod wall time (creation to the last container finishing) on both acquisition tiers, which is the span Appendix F §F.1 bills against. A pod that never started a container is not observed, because it occupied no node time.

The rate is the operator's, not ours. Appendix F's formula is (job_duration_seconds / 3600) × hourly_node_rate × resource_fraction, and $rate is that trailing pair collapsed into one number: the effective hourly cost of one worker slot. The shipped default, 0.096, is §F.1's own CPU example: an m6i.4xlarge at $0.768/hr with the pod requesting an eighth of it. Its GPU example works out at $4.10/hr, so the two differ by more than 40×.

That spread is why the shape-level panels stay in pod-hours: one currency figure spanning a tenant's GPU and CPU shapes is an average of two rates that are nothing like each other. To read one shape's spend, pin $runner_group and set $rate to that shape's slot rate. For per-tenant currency computed from a real node price book rather than a typed constant, use Cost attribution; this dashboard is the GAG-native cross-check for it, not a replacement.

Row 1 — Spend Summary (selected time range)

Every panel here uses $__range, so the time picker is the billing window: switch it to 30 days and the numbers are a month's.

Panel	Query	Visualization
Estimated spend	sum(increase(actions_gateway_job_duration_seconds_sum[$__range])) / 3600 * $rate	Stat. Currency only as far as $rate is right for the selection
Worker pod-hours	sum(increase(actions_gateway_job_duration_seconds_sum[$__range])) / 3600	Stat, the measured quantity with no rate applied. This is the number to reconcile against a cost tool's own pod-hours
Jobs completed	sum(increase(actions_gateway_job_duration_seconds_count[$__range]))	Stat
Mean job duration	pod-hours ÷ jobs	Stat. No data when the range holds no completed job, since the divisor is zero

Row 2 — Spend by Tenant

The comparison panels run instant queries, which is where this dashboard departs from its two neighbours. They are both panels in this row, both bar charts in Row 3, and the bar gauge in Row 4: each reduces the whole range to one number per tenant or per resource, so a range query would plot one bar per scrape and the comparison the panel exists to make would be unreadable. The time-series panels stay range queries, because a trend is what they are for.

Panel	Query	Visualization
Estimated spend by tenant	sum by (namespace) (increase(actions_gateway_job_duration_seconds_sum[$__range])) / 3600 * $rate	Bar chart, instant. Namespace is tenant, which is why this lines up with an aggregate=namespace allocation report with no extra wiring
Spend rate per hour by tenant	sum by (namespace) (rate(actions_gateway_job_duration_seconds_sum[5m])) * $rate	Time series. Pod-seconds per second is pod-hours per hour, so this is a live burn rate. The histogram attributes a pod's whole lifetime at completion, so the series is a trailing average and is lumpy over windows near the job duration itself
Share of fleet worker pod-hours	tenant pod-hours ÷ scalar(...) of the unfiltered total	Bar gauge, percent. The denominator is deliberately unfiltered, so filtering to one tenant shows its share of everything rather than 100% of itself. Rate-free

Row 3 — Spend by Runner Shape

Split by runner_group, which on the scale-set tier carries the RunnerSet name rather than a RunnerGroup one: the pod-side reading takes whichever owner label the pod carries, so one label key covers both tiers (Q713). A shape here is therefore whatever provisioned the worker, on either protocol.

Panel	Query	Visualization
Worker pod-hours by shape	sum by (namespace, runner_group) (increase(actions_gateway_job_duration_seconds_sum[$__range])) / 3600	Bar chart, instant. Hours rather than currency, per the rate spread above
Jobs completed by shape	the …_count counterpart	Bar chart, instant. Beside the pod-hours bars it separates the two ways a shape's spend grows: more jobs, or slower jobs
Mean job duration by shape	rate(…_sum[5m]) / rate(…_count[5m]), both sum by (namespace, runner_group)	Time series. A shape drifting upward buys less for the same money; a large divergence from a cost tool's pod-hours for that shape usually means oversized resource requests (right-sizing)

Row 4 — Zero Idle Compute (the always-on floor)

The row that answers "what am I paying for when nobody is running CI?".

Panel	Query	Visualization
Worker consumption vs. the always-on floor	sum by (namespace) (rate(actions_gateway_job_duration_seconds_sum[5m])) against kube_deployment_status_replicas_ready{deployment="actions-gateway-proxy"}	Time series, two series on one panel deliberately. Over a quiet weekend the worker line collapses toward zero while the proxy line stays flat, and that flat line is the entire idle floor. An Actions Runner Controller (ARC) scale set holding minRunners > 0 would show a worker line that never reaches zero. The worker series comes from the duration histogram, which attributes a pod's whole lifetime at completion, so it is a trailing average over the rate window rather than a live pod count: it will not equal the pod count behind the quota panel beside it. Needs kube-state-metrics
Jobs completed per hour	sum by (namespace) (rate(actions_gateway_job_duration_seconds_count[5m])) * 3600	Time series showing the volume that drives the worker line beside it
ResourceQuota headroom	100 * kube_resourcequota{type="used"} / ignoring(type) kube_resourcequota{type="hard"}	Bar gauge, percent, one bar per quota object and resource. A tenant sitting near 100% is one whose spend is held down by the cap rather than by demand, which is a budget conversation rather than an incident. The join is ignoring(type) rather than on(namespace, resource), which errors on a namespace holding two ResourceQuota objects; it also keeps the resourcequota label, which is why the legend names it. A quota lowered below current usage makes the query return above 100%, measured at 200% on two pods under a one-pod quota; max is 100, so the bar cannot extend past full. Needs kube-state-metrics

Dashboard Variables

The dashboards ship with these template variables already wired:

• $namespace (label_values({__name__=~"actions_gateway_active_sessions|actions_gateway_scaleset_jobs_assigned_total"}, namespace)) filters to a single tenant, on the tenant and platform dashboards. The union of the classic and scale-set series is deliberate: a scale-set-only deploy emits no active_sessions, so keying the variable on that alone would leave the dashboard blank.
• $runner_group (label_values(actions_gateway_active_sessions{namespace="$namespace"}, runner_group)) filters to a specific RunnerGroup on the classic-tier panels of the tenant dashboard. The runner_set-labelled panels are not filtered by it; $runner_set is their variable.
• $runner_set (label_values(actions_gateway_runnerset_worker_quota_pressure{namespace="$namespace"}, runner_set)) filters to a specific RunnerSet on the scale-set and v2 capacity panels of the tenant dashboard. It reads its label values from the Q319 capacity gauges rather than the scaleset_* series on purpose: those gauges are emitted for every RunnerSet, while scaleset_* exists only for ScaleSet-protocol sets, so keying on the latter would hide a Classic set from the dropdown entirely.

The budget dashboard declares its own set, because it reads a different metric from every panel and its dropdowns have to match that metric exactly:

• $namespace (label_values(actions_gateway_job_duration_seconds_count, namespace)) is keyed on the series the panels actually read, so the dropdown cannot offer a tenant with no cost data or hide one that has some. It needs no classic/scale-set union: the duration series is emitted from the pod informer and covers both tiers already.
• $runner_group (label_values(actions_gateway_job_duration_seconds_count{namespace=~"$namespace"}, runner_group)) is the runner shape, listing RunnerGroup and RunnerSet names together for the reason the Row 3 note gives.
• $rate is a textbox, not a query: the effective hourly cost of one worker slot, which is a fact about your contract and not something the cluster knows. Only the currency panels read it, so leaving the default in place still leaves every pod-hour and job count correct.

A textbox variable in a panel query needs the PromQL gate to know about it. make promql-check parses every panel expression, and a Grafana variable in syntactic position ([$__range], * $rate) is not valid PromQL. The checker substitutes from the dashboard's own templating.list before parsing, so a variable the dashboard never declares is reported by name rather than passing as a parse error nobody reads.

---
